Disk Widget Configuration

Option Type Default Description
label string '{volume_label} {space[used][percent]}' The format string for the disk widget.
label_alt string '{volume_label} {space[used][gb]} / {space[total][gb]}' The alternative format string for the disk widget.
class_name string "" Additional CSS class name for the widget.
volume_label string 'C' Partition which you want to show in the bar
decimal_display integer 1 The number of decimal places to show, default 1 (min 0 max 3)
update_interval integer 60 The interval in seconds to update the disk widget. Must be between 0 and 3600.
group_label dict {'volume_labels': ["C"], 'show_label_name': true, 'blur': true, 'round_corners': true, 'round_corners_type': 'normal','border_color': 'System', 'alignment': 'right', 'direction': 'down', 'offset_top': 6, 'offset_left': 0} Group labels for multiple disks. This will show the labels of multiple disks in a popup window.
callbacks dict {'on_left': 'do_nothing', 'on_middle': 'do_nothing', 'on_right': "exec explorer C:\\"} Callbacks for mouse events.
disk_thresholds dict {'low': 25, 'medium': 50, 'high': 90} Thresholds for Disk usage levels.
animation dict {'enabled': true, 'type': 'fadeInOut', 'duration': 200} Animation settings for the widget.
container_shadow dict None Container shadow options.
label_shadow dict None Label shadow options.
progress_bar dict {'enabled': false, 'position': 'left', 'size': 14, 'thickness': 2, 'color': '#57948a', 'animation': false} Progress bar settings.

Example Configuration

disk:
  type: "yasb.disk.DiskWidget"
  options:
      label: "{volume_label} {space[used][percent]}"
      label_alt: "{volume_label} {space[used][gb]} / {space[total][gb]}"
      volume_label: "C"
      update_interval: 60
      group_label:
        volume_labels: ["C", "D", "E", "F"]
        show_label_name: true
        blur: True
        round_corners: True
        round_corners_type: "small"
        border_color: "System"
        alignment: "right"
        direction: "down"
      callbacks:
        on_left: "toggle_group"
        on_middle: "toggle_label"
        on_right: "exec explorer C:\\" # Open disk C in file explorer
      label_shadow:
        enabled: true
        color: "black"
        radius: 3
        offset: [ 1, 1 ]
      disk_thresholds:
          low: 25
          medium: 50
          high: 90

Description of Options

  • label: The format string for the disk widget. Displays free space in percent.
  • label_alt: The alternative format string for the disk widget.
  • class_name: Additional CSS class name for the widget. This allows for custom styling.
  • volume_label: Partition/volume which you want to show in the bar.
  • decimal_display: The number of decimal places to show, default 1 (min 0 max 3).
  • update_interval: The interval in seconds to update the disk widget. Must be between 0 and 3600.
  • disk_thresholds: A dictionary specifying the thresholds for disk usage levels. The keys are low, medium, and high, and the values are the percentage thresholds.
  • group_label: Group labels for multiple disks. This will show the labels of multiple disks in a popup window.
  • volume_labels: List of volume labels to show in the group label.
  • show_label_name: Show the label name in the group label.
  • blur: Enable blur effect for the group label.
  • round_corners: Enable round corners for group label.
  • round_corners_type: Border type for group label can be normal and small. Default is normal.
  • border_color: Border color for group label can be None, System or Hex Color "#ff0000".
  • alignment: Alignment of the group label. Possible values are left, center, and right.
  • direction: Direction of the group label. Possible values are up and down.
  • offset_top: Offset from the top of the screen.
  • offset_left: Offset from the left of the screen.
  • callbacks: A dictionary specifying the callbacks for mouse events. The keys are on_left, on_middle, and on_right, and the values are the names of the callback functions.
  • animation: A dictionary specifying the animation settings for the widget. It contains three keys: enabled, type, and duration. The type can be fadeInOut and the duration is the animation duration in milliseconds.
  • container_shadow: Container shadow options.
  • label_shadow: Label shadow options.
  • progress_bar: A dictionary containing settings for the progress bar. It includes:
  • enabled: Whether the progress bar is enabled.
  • position: The position of the progress bar, either "left" or "right".
  • size: The size of the progress bar.
  • thickness: The thickness of the progress bar.
  • color: The color of the progress bar. Color can be single color or gradient. For example, color: "#57948a" or color: ["#57948a", "#ff0000"]" for a gradient.
  • background_color: The background color of the progress bar.
  • animation: Whether to enable smooth change of the progress bar value.

Widget Style

.disk-widget {}
.disk-widget.your_class {} /* If you are using class_name option */
.disk-widget .widget-container {}
.disk-widget .widget-container .label {}
.disk-widget .widget-container .label.alt {}
.disk-widget .widget-container .icon {}
/* Group label style */
.disk-group {}
.disk-group-row {}
.disk-group-label {}
.disk-group-label-size {}
.disk-group-label-bar {}
.disk-group-label-bar::chunk {}

/* Disk progress bar styles if enabled */
.disk-widget .progress-circle {}

Example Style for Group Label

.disk-group {
    background-color:rgba(17, 17, 27, 0.75);
}
.disk-group-row {
    min-width: 220px;
    max-width: 220px;
    max-height: 40px;
    margin: 0;
    padding: 0;
    border-radius: 6px;
    border: 1px solid rgba(128, 128, 128, 0);
}
.disk-group-row:hover {
    background-color:rgba(255, 255, 255, 0.05);
    border: 1px solid rgba(255, 255, 255, 0.1)
}
.disk-group-label-bar{
    max-height:8px;
    border:0px solid rgba(128, 128, 128, 0);
    background-color: rgba(137, 180, 250, 0.1);
    border-radius: 4px
}
.disk-group-label-bar::chunk{
    background-color: rgba(137, 180, 250, 0.3);
    border-radius: 4px
}
.disk-group-label {
    font-size: 10px
}
.disk-group-label-size {
    font-size: 10px;
    color: #585b70
}

Example Settings for Group Label and show menu

  disk:
    type: "yasb.disk.DiskWidget"
    options:
        label: "<span>\uf473</span>"
        label_alt: "<span>\uf473</span>"
        group_label:
          volume_labels: ["C", "D", "E", "F"]
          show_label_name: true
          blur: True
          round_corners: True
          round_corners_type: "normal"
          border_color: "System"
          alignment: "right"
          direction: "down"
          distance: 6
        callbacks:
          on_left: "toggle_group"

Style for Group Label and show menu

.disk-widget {
    padding: 0 6px 0 6px;
}
.disk-group {
    background-color:rgba(17, 17, 27, 0.4);
}
.disk-group-row {
    min-width: 220px;
    max-width: 220px;
    max-height: 40px;
    margin: 0;
    padding: 0;
    border-radius: 6px;
    border: 1px solid rgba(128, 128, 128, 0);
}
.disk-group-row:hover {
    background-color:rgba(255, 255, 255, 0.05);
    border: 1px solid rgba(255, 255, 255, 0.1);
}
.disk-group-label-bar{
    max-height:8px;
    border:0px solid rgba(128, 128, 128, 0);
    background-color: rgba(137, 180, 250, 0.1);
    border-radius: 4px;
}
.disk-group-label-bar::chunk{
    background-color: rgba(61, 135, 255, 0.3);
    border-radius: 4px;
}
.disk-group-label {
    font-size: 10px;
}
.disk-group-label-size {
    font-size: 10px;
    color: #666879;
}

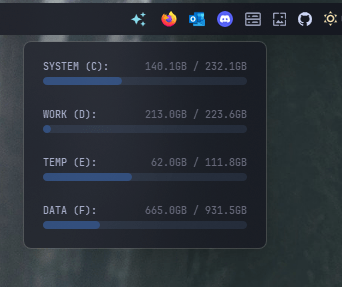

Preview of example above

GitHub YASB Widget
