Codex Usage Widget

Display the remaining percentage in the rate-limit windows reported by the Codex CLI. The widget uses Codex's app-server protocol, so it never reads ~/.codex/auth.json, copies access tokens, or calls a private web endpoint. Fetching runs in a background thread and the last normalized result is cached when Codex is temporarily unavailable.

Requirements

• A recent Codex CLI available in PATH (or configured with codex_path).
• A ChatGPT-backed Codex login. Run codex login once if Codex is not already signed in.

The widget reuses the login managed by Codex itself. No additional login is needed on a machine where the CLI already works. API-key-only authentication may not expose ChatGPT subscription rate limits.

Example Configuration

codex_usage:
  type: "yasb.codex_usage.CodexUsageWidget"
  options:
    label: "Codex {primary_remaining}%"
    label_alt: "Codex {secondary_window} {secondary_remaining}%"
    update_interval: 60
    cache_ttl: 120
    timeout: 15
    show_token_usage: true
    stale_icon: "⚠"
    progress_bar:
      enabled: true
      progress_type: "linear_horizontal"
      size: 36
      thickness: 6
      radius: 3
      color: "#4caf50"
      background_color: "#3c3c3c"
      position: "left"
      animation: true
    callbacks:
      on_left: "toggle_menu"
      on_middle: "refresh"
      on_right: "toggle_label"
    menu:
      blur: true
      round_corners: true
      round_corners_type: "normal"
      border_color: "System"
      alignment: "right"
      direction: "down"
      offset_top: 6
      offset_left: 0
      show_overview: true
      show_models: true
      show_activity: true
      show_resets: true
      show_details: true
      refresh_icon: "\uE72C"
      previous_page_icon: "\uE76B"
      next_page_icon: "\uE76C"

Options

The progress bar supports circular, linear_horizontal, and linear_vertical. color may be a single color or a list of gradient colors. Right-click toggles the active label/window, and the progress bar follows it.

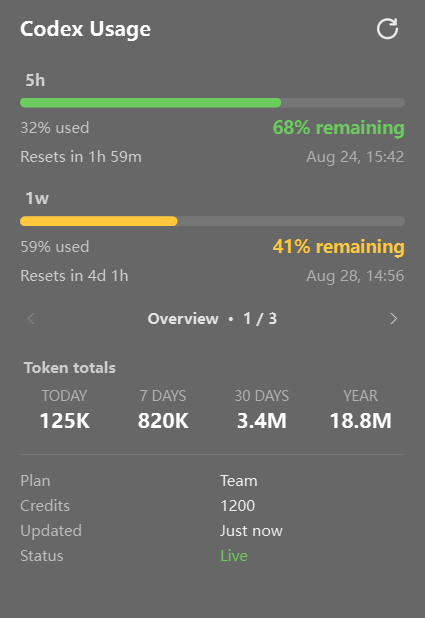

Details Popup

Left-click the widget to open a compact details window. The header and available rate-limit windows stay visible. The lower, fixed-height area shows one page at a time:

• Overview - token totals for today, 7 days, 30 days, and one year, plus optional plan, credits, updated time, live/cached status, and cached errors;

• Resets - available account usage-limit resets and their expiration dates;

• Models - the 30-day model breakdown when model data is available;
• Activity - the monthly heatmap and its existing month navigation.

Use the Fluent previous/next buttons to switch pages. The active page is retained while the persistent popup is reused. Navigation is hidden when only one page is available. Pages without valid token data are omitted, and disabling every optional page leaves the fixed rate-limit sections working normally.

The menu section switches control the lower area:

• show_overview shows token totals in the Overview page;

• show_details shows account and freshness details in the Overview page. If token totals are disabled but details are enabled, this page is labelled Details;

• show_resets shows the Resets page when the Codex CLI reports reset-credit metadata;

• show_models and show_activity control their respective pages.

show_token_usage: false remains the global switch for local token scanning. It hides token totals, Models, and Activity without affecting rate limits or the optional account details.

Left-click again to close it. The middle-click refresh callback also refreshes without opening the window. Accounts without a secondary limit simply omit that section.

Refresh Feedback

Clicking the Fluent refresh button starts a rotating animation and displays Refreshing… in the popup header. When the request finishes, the header briefly shows Refresh successful or Refresh failed. The button is disabled while a refresh is running to prevent duplicate requests. The middle-click callback still refreshes silently when the popup is closed.

Token statistics are calculated from token_count metadata in the current user's local Codex session history. The scanner does not parse or retain prompt/response text, never opens auth.json, and uploads nothing. Set show_token_usage: false to disable local history scanning and hide these sections.

The monthly heatmap opens on the current month and can navigate across the current and previous 11 months. Months earlier than the first locally available Codex token record remain selectable but are marked as unavailable rather than incorrectly displayed as zero usage.

Placeholders

• {primary_remaining} / {secondary_remaining} - percentage remaining.
• {primary_used} / {secondary_used} - percentage already used.
• {primary_window} / {secondary_window} - duration reported by Codex, such as 5h, 7d, or 1w.
• {primary_reset} / {secondary_reset} - time until reset.
• {plan} - account plan reported by Codex.
• {credits} - available credit balance, when present.
• {stale} - warning glyph when the last refresh failed and cached data is displayed.

Window names are deliberately derived from windowDurationMins instead of assuming that every account has a 5-hour and weekly limit. Missing secondary limits render as -- and are omitted from the popup.

Widget Style

.codex-usage {}
.codex-usage .widget-container {}
.codex-usage .label {}
.codex-usage .progress-container {}

/* Popup menu */
.codex-usage-menu {}
.codex-usage-menu .header {}
.codex-usage-menu .header .text {}
.codex-usage-menu .header .refresh-status {}
.codex-usage-menu .header .refresh-status.busy {}
.codex-usage-menu .header .refresh-status.success {}
.codex-usage-menu .header .refresh-status.error {}
.codex-usage-menu .header .refresh {} /* Segoe Fluent Icons Refresh glyph */
.codex-usage-menu .header .refresh:hover {}
.codex-usage-menu .section {}
.codex-usage-menu .section .title {}
.codex-usage-menu .section .progress {}
.codex-usage-menu .section .progress .fill {}
.codex-usage-menu .section .progress.low .fill {}
.codex-usage-menu .section .progress.critical .fill {}
.codex-usage-menu .section .stats {}
.codex-usage-menu .section .used {}
.codex-usage-menu .section .remaining {}
.codex-usage-menu .section .remaining.good {}
.codex-usage-menu .section .remaining.low {}
.codex-usage-menu .section .remaining.critical {}
.codex-usage-menu .section .timing {}
.codex-usage-menu .section .reset {}
.codex-usage-menu .section .date {}
.codex-usage-menu .pager {}
.codex-usage-menu .page-nav {}
.codex-usage-menu .page-button {}
.codex-usage-menu .page-button:hover {}
.codex-usage-menu .page-button:disabled {}
.codex-usage-menu .page-indicator {}
.codex-usage-menu .page-stack {}
.codex-usage-menu .page {}
.codex-usage-menu .empty-state {}
.codex-usage-menu .overview-tokens {}
.codex-usage-menu .reset-credits-header {}
.codex-usage-menu .reset-credits-count {}
.codex-usage-menu .reset-credit-card {}
.codex-usage-menu .reset-credit-title {}
.codex-usage-menu .reset-credit-expiration {}
.codex-usage-menu .models {}
.codex-usage-menu .section-title {}
.codex-usage-menu .model-row {}
.codex-usage-menu .model-name {}
.codex-usage-menu .model-value {}
.codex-usage-menu .model-bar {}
.codex-usage-menu .model-bar .fill {}
.codex-usage-menu .period-name {}
.codex-usage-menu .period-value {}
.codex-usage-menu .activity {}
.codex-usage-menu .activity-title {}
.codex-usage-menu .month-label {}
.codex-usage-menu .month-nav {}
.codex-usage-menu .month-nav:hover {}
.codex-usage-menu .heatmap .weekday {}
.codex-usage-menu .history-note {}
.codex-usage-menu .heatmap .cell {}
.codex-usage-menu .heatmap .cell.level-1 {}
.codex-usage-menu .heatmap .cell.level-2 {}
.codex-usage-menu .heatmap .cell.level-3 {}
.codex-usage-menu .heatmap .cell.level-4 {}
.codex-usage-menu .heatmap .cell.unavailable {}
.codex-usage-menu .details {}
.codex-usage-menu .details .name {}
.codex-usage-menu .details .value {}
.codex-usage-menu .details .status.live {}
.codex-usage-menu .details .status.stale {}
.codex-usage-menu .details .error {}

menu.refresh_icon, menu.previous_page_icon, and menu.next_page_icon default to the matching Segoe Fluent Icons glyphs and can be replaced without changing the Widget code. This font is included with Windows 11; Windows 10 users may need to install it as described in the YASB installation guide.

Example Style

This complete default follows the Windows 11 styling used by the Claude Usage widget. It uses readable Segoe UI sizes, compact Fluent controls, and thin separators instead of boxed cards. Qt scales these logical pixel sizes with the active Windows display scale. The colors indicate remaining capacity: green is healthy, amber is low, and red is critical.

/* Bar */
.codex-usage .label {
    color: rgba(255, 255, 255, 0.9);
    font-size: 12px;
    font-weight: 500;
    padding-left: 5px;
}
.codex-usage .progress-container { margin-left: 3px; }

/* Popup menu */
.codex-usage-menu {
    background-color: rgba(32, 32, 32, 0.68);
    font-family: "Segoe UI";
    min-width: 340px;
}
.codex-usage-menu .header {
    padding: 9px 16px;
    border-bottom: 1px solid rgba(255, 255, 255, 0.1);
}
.codex-usage-menu .header .text {
    color: #ffffff;
    font-size: 16px;
    font-weight: 600;
}
.codex-usage-menu .header .refresh-status {
    color: rgba(255, 255, 255, 0.62);
    font-size: 12px;
    padding-right: 6px;
}
.codex-usage-menu .header .refresh-status.busy { color: rgba(255, 255, 255, 0.72); }
.codex-usage-menu .header .refresh-status.success { color: #6ccb5f; }
.codex-usage-menu .header .refresh-status.error { color: #ff6b6b; }
.codex-usage-menu .header .refresh {
    font-family: "Segoe Fluent Icons";
    color: rgba(255, 255, 255, 0.72);
    background-color: transparent;
    border: none;
    border-radius: 4px;
    font-size: 16px;
    min-width: 28px;
    max-width: 28px;
    min-height: 28px;
    max-height: 28px;
    padding: 0;
    margin: 0;
}
.codex-usage-menu .header .refresh:hover {
    color: #ffffff;
    background-color: rgba(255, 255, 255, 0.1);
}
.codex-usage-menu .section {
    padding: 8px 16px;
    border-bottom: 1px solid rgba(255, 255, 255, 0.1);
}
.codex-usage-menu .section .title {
    color: rgba(255, 255, 255, 0.7);
    font-size: 13px;
    font-weight: 600;
    padding-bottom: 6px;
}
.codex-usage-menu .section .progress {
    background-color: rgba(255, 255, 255, 0.1);
    border-radius: 4px;
    min-height: 8px;
    max-height: 8px;
}
.codex-usage-menu .section .progress .fill {
    background-color: #6ccb5f;
    border-radius: 4px;
}
.codex-usage-menu .section .progress.low .fill { background-color: #ffc83d; }
.codex-usage-menu .section .progress.critical .fill { background-color: #ff6b6b; }
.codex-usage-menu .section .stats { padding-top: 7px; }
.codex-usage-menu .section .used {
    color: rgba(255, 255, 255, 0.62);
    font-size: 12px;
}
.codex-usage-menu .section .remaining {
    color: #ffffff;
    font-size: 14px;
    font-weight: 600;
}
.codex-usage-menu .section .remaining.good { color: #6ccb5f; }
.codex-usage-menu .section .remaining.low { color: #ffc83d; }
.codex-usage-menu .section .remaining.critical { color: #ff6b6b; }
.codex-usage-menu .section .timing { padding-top: 6px; }
.codex-usage-menu .section .reset {
    color: rgba(255, 255, 255, 0.68);
    font-size: 12px;
}
.codex-usage-menu .section .date {
    color: rgba(255, 255, 255, 0.48);
    font-size: 12px;
}

/* Fixed-height page area */
.codex-usage-menu .pager { background-color: transparent; }
.codex-usage-menu .page-nav {
    padding: 5px 12px;
    border-bottom: 1px solid rgba(255, 255, 255, 0.08);
}
.codex-usage-menu .page-button,
.codex-usage-menu .month-nav {
    font-family: "Segoe Fluent Icons";
    color: rgba(255, 255, 255, 0.68);
    background-color: transparent;
    border: none;
    border-radius: 4px;
    font-size: 12px;
    min-width: 26px;
    max-width: 26px;
    min-height: 26px;
    max-height: 26px;
    padding: 0;
}
.codex-usage-menu .page-button:hover,
.codex-usage-menu .month-nav:hover {
    color: #ffffff;
    background-color: rgba(255, 255, 255, 0.08);
}
.codex-usage-menu .page-button:disabled,
.codex-usage-menu .month-nav:disabled {
    color: rgba(255, 255, 255, 0.22);
}
.codex-usage-menu .page-indicator {
    color: rgba(255, 255, 255, 0.82);
    font-size: 12px;
    font-weight: 600;
}
.codex-usage-menu .page-stack { background-color: transparent; }
.codex-usage-menu .page { padding: 12px 16px; }
.codex-usage-menu .empty-state {
    color: rgba(255, 255, 255, 0.55);
    font-size: 12px;
    padding: 18px 0;
}

/* Overview page */
.codex-usage-menu .overview-tokens { padding-bottom: 12px; }
.codex-usage-menu .section-title,
.codex-usage-menu .activity-title {
    color: rgba(255, 255, 255, 0.68);
    font-size: 12px;
    font-weight: 600;
}
.codex-usage-menu .section-title { padding-bottom: 8px; }
.codex-usage-menu .periods { padding-bottom: 4px; }
.codex-usage-menu .period-name {
    color: rgba(255, 255, 255, 0.5);
    font-size: 11px;
}
.codex-usage-menu .period-value {
    color: #ffffff;
    font-size: 16px;
    font-weight: 600;
}
.codex-usage-menu .details {
    padding-top: 12px;
    border-top: 1px solid rgba(255, 255, 255, 0.08);
}
.codex-usage-menu .details .name {
    color: rgba(255, 255, 255, 0.56);
    font-size: 12px;
}
.codex-usage-menu .details .value {
    color: rgba(255, 255, 255, 0.9);
    font-size: 12px;
}
.codex-usage-menu .details .status.live { color: #6ccb5f; }
.codex-usage-menu .details .status.stale { color: #ffc83d; }
.codex-usage-menu .details .error {
    color: #ff6b6b;
    font-size: 11px;
    max-height: 30px;
    padding-top: 5px;
}

/* Usage-limit reset credits page */
.codex-usage-menu .reset-credits-count {
    color: rgba(255, 255, 255, 0.55);
    font-size: 11px;
}
.codex-usage-menu .reset-credit-card {
    background-color: rgba(255, 255, 255, 0.06);
    border: 1px solid rgba(255, 255, 255, 0.09);
    border-radius: 5px;
    min-height: 44px;
    max-height: 44px;
    padding: 6px 10px;
}
.codex-usage-menu .reset-credit-title {
    color: rgba(255, 255, 255, 0.9);
    font-size: 12px;
    font-weight: 600;
}
.codex-usage-menu .reset-credit-expiration {
    color: rgba(255, 255, 255, 0.52);
    font-size: 11px;
}

/* Models page */
.codex-usage-menu .model-row {
    min-height: 27px;
    max-height: 27px;
}
.codex-usage-menu .model-name {
    color: rgba(255, 255, 255, 0.82);
    font-size: 12px;
    min-width: 96px;
    max-width: 96px;
}
.codex-usage-menu .model-value {
    color: rgba(255, 255, 255, 0.65);
    font-size: 12px;
    min-width: 52px;
    max-width: 52px;
}
.codex-usage-menu .model-bar {
    background-color: rgba(255, 255, 255, 0.11);
    border-radius: 3px;
    min-height: 7px;
    max-height: 7px;
}
.codex-usage-menu .model-bar .fill { background-color: #7d88e8; border-radius: 3px; }
.codex-usage-menu .row-2 .model-bar .fill { background-color: #b87ae7; }
.codex-usage-menu .row-3 .model-bar .fill { background-color: #e49ada; }
.codex-usage-menu .row-4 .model-bar .fill { background-color: #7eb5e8; }
.codex-usage-menu .row-5 .model-bar .fill { background-color: #7bc7a4; }

/* Activity page */
.codex-usage-menu .activity-header { padding-bottom: 7px; }
.codex-usage-menu .month-label {
    color: #ffffff;
    font-size: 12px;
    font-weight: 600;
    min-width: 106px;
    max-width: 106px;
}
.codex-usage-menu .heatmap .weekday {
    color: rgba(255, 255, 255, 0.5);
    font-size: 11px;
    min-width: 20px;
    max-width: 20px;
    padding-bottom: 2px;
}
.codex-usage-menu .history-note {
    color: rgba(255, 255, 255, 0.5);
    font-size: 11px;
    padding-top: 6px;
}
.codex-usage-menu .heatmap .cell {
    background-color: rgba(255, 255, 255, 0.08);
    border-radius: 3px;
    min-width: 20px;
    max-width: 20px;
    min-height: 20px;
    max-height: 20px;
}
.codex-usage-menu .heatmap .cell.level-1 { background-color: #244f2b; }
.codex-usage-menu .heatmap .cell.level-2 { background-color: #34713b; }
.codex-usage-menu .heatmap .cell.level-3 { background-color: #50a653; }
.codex-usage-menu .heatmap .cell.level-4 { background-color: #79d677; }
.codex-usage-menu .heatmap .cell.future,
.codex-usage-menu .heatmap .cell.outside { background-color: transparent; }
.codex-usage-menu .heatmap .cell.unavailable {
    background-color: transparent;
    border: 1px solid rgba(255, 255, 255, 0.08);
}

Troubleshooting

• Codex CLI was not found: install Codex, add it to PATH, or set codex_path to its full path.
• -- or a stale warning: run codex in a terminal and complete ChatGPT login, then middle-click the widget.
• Shared/public configuration: do not bundle a user's .codex directory or credentials. Each user must install and sign in to Codex under their own Windows account.
